Description
- Next generation and new level of sophistication in invisible embedded audio technology, SSP6 with new Rev-Loc™ universal screw on mounting plate for unparalleled ease of installation to virtually all substrates in less then 3 minutes.
- Incredible class leading acoustic fidelity while driving all materials including glass, drywall, wood, fiberglass, metal, Highest power density, best sounding transducers available using high energy neodymium magnet structures
- Proprietary cooling technologies for better efficiency and reliability
- Frequency range full bandwidth: (unequalized) 45Hz – 20KHz, Subwoofer not required
- Power handling up to 400W (instantaneous peak)
| Product Dimensions | 8 x 6 x 6 inches |
|---|
| Shipping Weight | 4 pounds |
|---|
A Revolution in Speaker Technology.

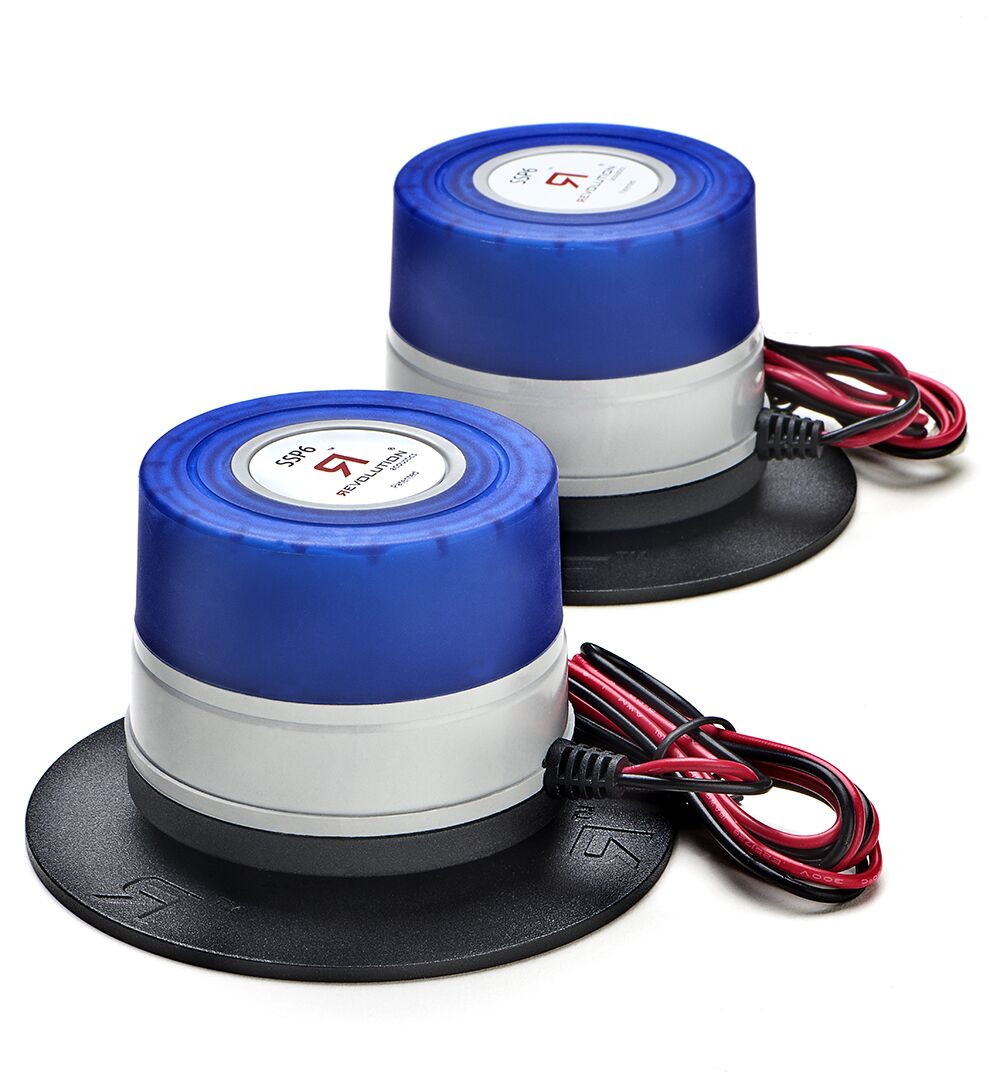

The patented SSP6 Multiducer™ (Multifunctional Transducer) brings a revolution to not only invisible audio, but all kinds of installed speaker applications. Its sheer performance with high fidelity audio, high power handling and constant SPL throughout a listening space mean it’s the perfect speaker for sound masking, conference rooms, retail, restaurant, hospitality, house of worship, transportation and other commercial uses; its performance combined with fully invisible installation make it ideal for high end residential use.
The SSP6 Multiducer is a new class of product for transforming rigid surfaces – walls, ceilings, tables, windows, vehicles, and other surfaces – into full range audio speakers. It employs a different subset of acoustical physics – bending wave physics – giving you a true Distributed Mode Loudspeaker (DML) with no hot spots or off-axis high frequency dropoffs. (Read more about the technology behind the SSP6 here.)
SSP6 Multiducers install directly onto a surface and installation is accomplished in a matter of minutes. The secret to our ultra-fast installation is the RevLoc™ mounting plate. This plate is adhered to the surface (see the SSP6 Installation Guide for more information) and the SSP6 is screwed into place on the RevLoc. It’s that easy! No tools are needed.
The SSP6 is UL certified for use in plenum spaces and IP66 rated for extreme weather and marine applications.
The Revolutionary Choice for Sound Masking.
Because coverage is so broad and even, a single SSP6 unit can take the place of up to 9 “emitters” traditionally used in sound masking applications – saving money not only in equipment costs, but in labor and wiring. Combine it in 70V mode with our revolutionary RevNet 2140 amplifier, which incorporates a customizable sound masking generator, and you can install a comprehensive sound masking system for at a surprisingly low cost.
Read more about how to use the SSP6 in sound masking.
| Specifications | SSP6 Multiducer |
|---|---|
| Impedance | 8Ω (70.7V and 100V compatible) |
| Frequency Response | 45Hz – 20KHz (unequalized) |
| Max Power | 200W (instantaneous peak) |
| Max Continuous Power | 24W unenclosed, 15W enclosed |
| IP Rating | IP66 Certified – water and dust proof |
| Regulatory | UL 2043 listed |
| Weight | 1.50 lbs (0.68 kg) |
| Dimensions | 2.10” H x 2.70” W (53.5mm H x 69.0mm W) |
Expanded Specifications
- Frequency range full bandwidth: (unequalized) 45Hz – 20KHz
- Subwoofer not required
- Power handling up to 200W (instantaneous peak)
- Compact 2.7” Ø X 2.1” high (69mmØ X 53.5mm high)
- Weight (Individual): 0.68 Kg / 1.5 Lbs.
- Impedance: 8Ω
- Recommended amplifier per channel wattage: 60W – 120W
- Max. Continuous Thermal Power: 15 W totally enclosed, 24W unenclosed
- Transducer Accelerated Life test: fully enclosed passes EIA 426B at 9.4V (recommended amplifier power rating of 30W) 8 hour test 23C ambient
- Transducer Accelerated Life test: unenclosed passes EIA 426B at 12.0V (recommended amplifier power rating of 48W) 8 hour test 23C ambient
- IP66 Ingress protection certified – water and dust proof
- Packaging: 2 per box
- Package weight: 1.55 Kg / 3.5 Lbs.
The game changer for Background Music in any location. RA (Revolution Acoustics) changes the way you think about speakers!
”We want to change the way you think about speakers.
Revolution AcousticsModel presented: SSP6
How it works
Traditional cone-type speakers have been around for more than a century and have been plagued by the same problems all along: Limited coverage area. Unintelligible sound as soon as you move away from the center of the speaker.
Too-loud or too-soft volume, again depending on how close you are to the speaker.
“There’s a different way to handle audio, and it turns out to be a great value proposition for you while creating a compelling experience for your customers.”
The SSP6 excites the substrate to create a massive planar radiator.
These Planar waves form a virtual bubble of non-point source sound, engulfing the entire space in audio that is of even level throughout the frequency spectrum.
We call this Constant SPL Audio.
Example
Everyone wants to sit in the sweet spot and in a typical situation speaker, dispersion and frequency are different in different seating areas.
The SSP6 allows you to produce an immersive sound field where everyone enjoys the same experience.
