Description

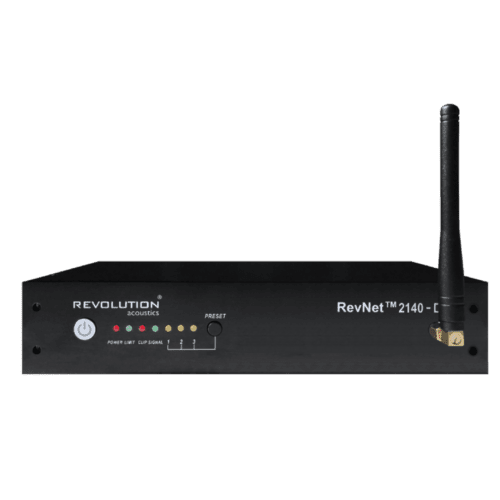

Here’s the “Swiss Army Knife” of small amplifiers. The RevNet™ 2140 and RevNet™ 2140-D give you the power, versatility and quality you need for both commercial and high-end residential installations. One RevNet amp will power two speakers. Units may be daisy-chained for larger applications, and the RevNet 2140-D has the added power of full Dante® compatibility with AES67 support.
Quality
Loads of headroom with 26 dB gain, coupled with the lowest distortion you’ll find on any comparable pro audio amp. Audiophile-quality RevNet amps are suitable for both pro audio and high-end HiFi operation.
Powerful
140 watts per channel (280 W in mono) will power nearly any installed speaker in the room. RevNet amps can be used in 4/8/16 Ohm or 70/100V installations
Easy to Install
Fast-wiring Phoenix connectors allow you to quickly pre-wire sources and then just plug them into the amp.
Versatile Control
Direct RVC connections along with USB, TCP/IP, WiFi or Dante make it easy to manage your audio sources and volume.
Onboard DSP for Easy Configuration
A built-in sound masking generator allows you to quickly configure the amp for corporate uses, while 30 band EQ and RMS compressor bring you complete control over the sound of the room.
| Specifications | RevNet 2140(-D) |
|---|---|
| Configurations | 4/8 /16Ω or 70/100V |
| Power Output | 2x140W low-Z; 1x280W high-Z |
| Control Options | WiFi, LAN, USB, Dante® (2140-D) |
| DSP processes/EQ | 30 band EQ with auto-EQ mode; RMS compressor; overflow limiter; sound masking generator |
| Frequency Response | 20Hz – 20kHz (+0/-0.25 dB)@ 8Ω |
| Connectors | Input: Euroblock; Output: Euroblock |
| Regulatory | cNEMKOus, CE, RoHS |
| Weight | 7.00 lbs (3.18 kg) |
| Dimensions | 1/2 RU 1.73” H x 11.00” W x 8.70” D (43.9mm H x 279.4mm W x 220.9mm D) |
Specifications
- 2 x 140W@16/8/4 , 100V/70V @280W
- Phoenix connectors for Inputs/Link Output, Amp Out and RVC
- TCP/IP and USB interfaces along with Integrated WiFi for remote control and set up
- Built-in sound masking generator
- 30 band fully customizable DSP
- In-Room AutoEQ and mobile app support
- 2 x 140W@16/8/4 , 100V/70V @280W
- Phoenix connectors for Inputs/Link Output, Amp Out and RVC
- Dante® (with AES67 support) and USB interfaces along with Integrated WiFi for remote control and set up
