Description

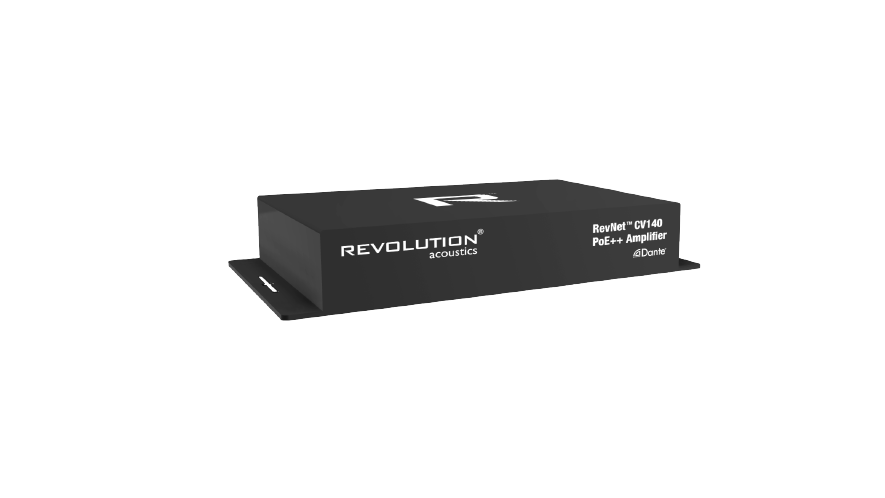

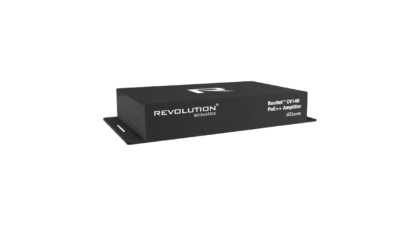

The latest in our RevNet amp series, RevNet CV and LZ amps provide ultra-easy signal management via your Dante® network and the convenience of either low-Z (4 / 8 Ω) or constant voltage (70.7 / 100 V) speaker outputs.
The simplicity of Dante® with the power you need.
Now you can power SSP6 Multiducers using audio from your Dante network. Our PoE++ amps are single cable devices designed for use in small or medium zones, with no need for a local power outlet. They use a 60W port on a PoE++ switch (or comparable injector) with the convenience of either low impedance or constant voltage speaker outputs.
The PoE++LZ220 provides 2 channels at 20 watts each in 4 / 8 ohms (the SSP6 uses an 8 ohm load) while the CV140 provies 1 channel of 40 watts at 70V/100V. (To use the CV140 with your SSP6 Multiducer, you’ll need the RA-T1 transformer.)
Leverage the CAT5e/6 cable already in use throughout a facility to add speakers easily and quickly, with the ease of control and audio routing that your Dante network brings to the building.
| Specifications | PoE++CV140 |
|---|---|
| Configurations | 70/100V |
| Power Output | 1 x 40W |
| Control Options | Dante® |
| DSP processes/EQ | EQ optimized for SSP6 |
| Frequency Response | 100 Hz – 20 kHz, 70.7 / 100V |
| Connectors | Input: Dante (RJ45); Output: Euroblock |
| Regulatory | UL 2043 listed, CE, RoHS |
| Weight | 1.0 lbs (0.45 kg) |
| Dimensions | 1.20” H x 6.70” W x 4.31” D (30.4mm H x 170.1mm W x 109.4mm D) |
| Specifications | PoE++LZ220 |
|---|---|
| Configurations | 4/8/16 Ω |
| Power Output | 2 x 20W |
| Control Options | Dante® |
| DSP processes/EQ | EQ optimized for SSP6 |
| Frequency Response | 20 Hz – 20 kHz, 4/8 Ω |
| Connectors | Input: Dante (RJ45); Output: Euroblock |
| Regulatory | UL 2043 listed, CE, RoHS |
| Weight | 0.60 lbs (0.27 kg) |
| Dimensions | 1.20” H x 6.70” W x 4.31” D (30.4mm H x 170.1mm W x 109.4mm D) |
